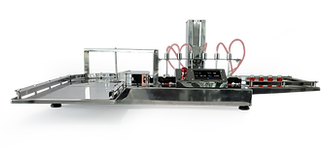

FillBot
Configurable multi vial/bottle filling station
The FillBot Liquid Filling Station is a ground breaking solution in the realm of liquid filling technology. It is designed to cater to a wide range of industries such as biotechnology, diagnostics, pharmaceutical, chemicals, cosmetics & toiletries and dairy, food & beverage industry.
WHY FILLBOT
Rich in Features, Compact in Design
-
Fill Volumes : 0.5 mL to 5000 mL
-
Automation : Semi-automatic & Fully Automatics Variants
-
Application : Aseptic & Non-Aseptic Liquid Fill/Finish
-
Compatibility : Viscous & Frothing Liquids
-
Programmable : Yes (Filling Speed & Volume)
-
Profiles : Settings for various liquids can be saved.
-
Compliance : GMP Compliant (Activity data saved & can be printed)
FEATURES
1. Aseptic Filling with No Contact
FillBot takes a leap forward in ensuring product integrity through
aseptic filling. The peristaltic pump technology allows for
aseptic filling, eliminating the risk of contamination. This feature is particularly vital for industries where maintaining product
sterility is critical, such as Pharmaceuticals, Food Processing, Biotechnology and Diagnostics
2. Handling Viscous Liquids with Ease
Viscous liquids prone to causing cleaning issues due to their sticky nature. FillBot addresses this problem by having minimum
point of contact between dispensing nozzle and liquid. This minimizes splashing of liquid while filling, residue buildup and
simplifies the cleaning process.
3. No Frothing
Preventing frothing during the filling is crucial for industries dealing with liquids that tend to foam when filled into containers. Frothing leads to product wastage and complicates the packaging process. FillBot's precise control mechanisms ensure a smooth and froth-free filling operation, enhancing efficiency and product quality.
4. Mountable on existing lines
Compact design and adaptability (requiring just 18 inch of conveyor space) to exiting conveyor systems offer substantial advantages, including cost savings, efficient space utilization, seamless integration and reduced installation time. FillBot is an attractive proposition for businesses looking to upgrade their liquid filling processes and maximise the utility of their existing infrastructure.
5. Reliable Backup Systems
Body made up of SS316L to be compliant with Aseptic filling line,
CIP compliances.
SPECIFICATIONS
Fill Volume
0.5ml to 5000ml
Vials/Bottles: Diameter
Height
16 mm to 49 mm
40 mm to 110 mm
Production Capacity
Up to 900 vials/hour for sample of 100ml*
Filling Accuracy
Dual head peristaltic pump with better than +/- 1% accuracy*
No of Heads
2 / 4 / 6
Direction Off Movement
Left to Right
Filling Nozzle
Bottom to Top Non-Pneumatic diving nozzle system
(no need for air compressor system)
Volume Adjustment
From touch screen display
Suitable for products
Pharmaceutical and Bio processing preparations and fill/finish, Reagents, Cosmetics and toiletries, Perfumes, Fragrances, Essential oils, Inks, Dyes, Viscous and corrosive liquids, Food and beverage
Suitable for Packaging Material
HDPE / PET / Glass / Metal tin / Aluminium bottles / Vials
Material of Construction
Stainless steel (304 / 316 grade) and Aluminium
(as per customer requirement)
Power
12V 5A
Delivered with: 1 peristaltic pump with 2 independent drives, 2 peristaltic pump heads, 2 sets of 5 meters of tubing, 1 user manual, 1 power adapter.
*Individual results may vary. Accuracy and capacity depend on fill volume, inline check weighing, bottle/vial size and liquid viscosity.
FillBot Division of Resolve, an ISO 13485 certified company.
Your Filling Line Solution
FillBot
-
Configurable multi-vial filling bot
-
Stackable on existing lines
-
Easy Retrofit into LAF
-
Add Redundancy
